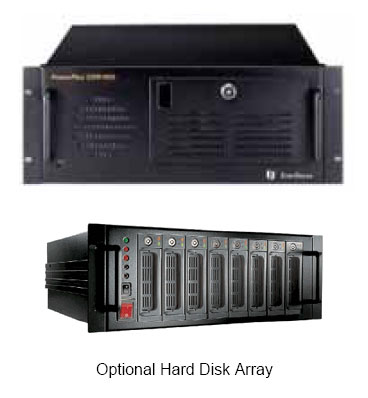

16 Channel DVR
Model: DVR-600
16 Channel DVR
Price: $7,770.00


Add to Cart:


  9999 Units in Stock


The DVR-600 is a digital video recorder configured for triplex operation for simultaneous viewing, recording, and playback. The included operating system in non-Windows based for stability and reliability. There is a watermark feature for authentication


Features:

• Triplex operation for simultaneous viewing, recording, and playback
• Stable and reliable non Windows based operating system
• 16 camera inputs color or B/W cameras with loop-through
• Auto PAL and NTSC format detection or manual system setting
• Multiple monitor output formats
• Built-in MPEG1 and JPEG compression
• Multiple screen modes: Full screen, 4, 7, 9, 10, 13 and 16 multi-screen video displays
• Dual hot-swappable hard drives
• Recording time can be unlimited by expanding additional HDDs in disk arrays
• Recording rate: 60 pictures per second global processing rate
• Recording modes: continuous recording, event recording, and time-lapse recording modes
• Alarm notification via e-mail
• 24 alarm inputs with configurable actions mapped to time zones
• 8 alarm outputs ( 4 N.C. / 4 N.O.)
• Event logging for video loss, motion detection, alarm input, alarm reset, power on/off
• Intelligent motion detection with programmable area and sensitivity for each camera
• Pre-alarm and post-alarm recording
• Radar search functions such as thumbnail video, motion and alarm
• VCR like play, reverse, step forward, step backward, and pause
• Fast retrieve recorded video either by time, date, location or alarm status
• Multiple password authorization for high degree of security
• Remote surveillance and control via TCP/IP, LAN, Web browser
• Able to set daylight saving time accordingly
• Encrypted transmission for data protection
• User friendly graphics design interface
• System auto recovery after power failure resumes recording operations
• Nonvolatile program memory protects all programmable features against power loss
• Playback Search by entering "Start time" and "end time"
• Recorded image can be printed by printer
• Support CD-R/W for additional storage and backup purposed
• Authentication watermark and time stamp

Specifications:

• User Interface: Graphic user interface
• User Input Device: Mouse (Default) and Keyboard (Optional)
• Title: 10-character title generator for each camera
• Sequential Switch: Programmable, with adjustable dwell time
• Watch Dog Timer: Yes, Automatic Reboot in event of system lock up
• Security: Multi-level password protection
• System Protection: Auto power on after power loss recovery
• Remote access: Internet Explorer / Netscape with JAVA support
• Network protocol: HTTP, SMTP, TCP/IP, ICMP, ARP
• Network Interface card: Fast ethernet, 10/100Mbps (RJ45 connector x 1)
• Expansion Ports: USB, Parallel, Com Ports x 2, PS 2 Mouse, PS 2 Keyboard
• Power Source: 115 / 230 VAC±10%, 60 / 50 Hz, AC2.6 Amp.
• Power Consumption: 150W
• Dimension: 426(W) x 480(D) x 176(H)mm
• Weight: 21kg.
• Operation Temperature: 0°C~+45°C
• Video format: NTSC/EIA or PAL/CCIR (auto-sensing)
• Video Input: 16 camera inputs with loop through (BNC), 1Vp-p / 75ohm
• Video Output: 1 x VGA monitor output, D-Sub 15 pin
• 1 x S-Video monitor output, 1Vp-p / 75ohm
• 1 x BNC composite video output, 1Vp-p / 75ohm
• Video Resolution: 352x240 (NTSC); 352x288 (PAL)
• Call Monitor: 1 x BNC composite video output, 1Vp-p / 75ohm
• Video Compression: JPEG and MPEG-1
• Hard Disk Storage: Up to 18 sets hot swappable HDD, 3.5” half height IDE
• Floppy Disk Drive: Built-in
• Compact Flash Memory: 24 MB
• Alarm Input: 24 inputs (N.C., N.O.)
• Alarm Output: 8 outputs (4 N.C., 4 N.O.)
• Motion Detection: Yes, 16 (width) x 12 (height) matrix per camera
• Video Loss Detection: Yes
• Event Log: Yes
• Recording Mode: Continuous, Time-lapse recording, Event recording
• Recording Rate: Up to 60 pictures per second for NTSC
• Playback Search: Date/time, HDD, alarm, motion search
• Setup: On screen setup
