Fast Flow Monitor
Model: MS-200
Fast Flow Monitor
Price: $10,950.00


Add to Cart:


  9999 Units in Stock

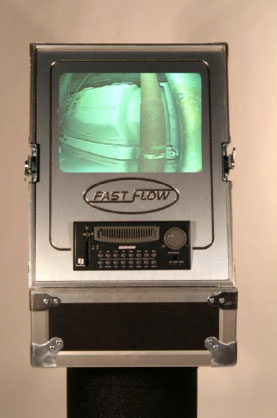

Part of the Fast Flow Vehicle Inspection System, a portable viewing system containing a color 12 inch LCD/TV and Digital Video Recorder which visually projects and records all activity from chassis track, hand held infrared cameras, occupant camera .


• A.T.A. Standard constructed case
• 12 inch color LCD TV Screen
• 4 Channel Digital Video Recorder
• AC power or Battery Power
• Video Format: NTSC or PAL
• Video Input: 4 Camera inputs(BNC), 1Vp-p/75ohm
• Video Output: 1 BNC video out(1Vp-p/75ohm) for main monitor, 1 BNC video out(1VPp/75ohm) for call monitor, video out(1Vp-p/75ohm) for looping
• Video Display: Full, PIP, Quad and 2x2 zoom for live and playback
• Display Resolution: 720 x 484(NTSC) or 720 x 576(PAL)
• Recording Resolution: 720 x 484(NTSC) or 720 x 576(PAL)
• Video Pause: YES
• Alarm Input: 4 Alarm inputs
• Alarm Output: 1 Alarm outputs
• Hard Disk Storage: One Hot-Swap 3.5inch IDE Hard Disk
• Recording Rate: 60/50FPS for NTSC/PAL
• Display Rate: Real time for each camera
• Recording Mode: Continuous, Time-Lapse, Schedule or Event recording
• Playback Rate: 60/50FPS for NTSC/PAL
• Playback Search: By Date/Time or Event or Segment
• Motion Detection: Yes, with configurable detection area and sensitivity
• Video Loss Detection: YES
• Event Log: YES
• User Interface: Menu Driven
• Setup: On screen display setup
• User Input Device: Front panel keypad
• Timer: Built-in real time clock
• Watch Dog Timer: YES
• Ethernet: RJ45 connector for network communication
• Archive: Compact Flash Slot for archive
• RS-232: 9-pin female connector for local communication
• RS-485: RJ11 connectors for remote control
• Audio: 1 mono(MIC) input, 1 mono(SPEAKER) output
• Power Source: 12VDC ~ 24VAC
• Power Consumption: 60W
• Dimension(H)x(W)x(D): 110 x 320 x 320.8
• Operating Temperature: 0c ~ +50c
• Sunlight Readable
• Resolution (pixels): (1024xRGB) x 768
• Dot Pitch (mm): 0.264 x 0.264
• Brightness: 700 nit
• Backlight: Dual CCFL
• Contrast Ratio: 250/1
• Color Configuration: RGB V Stripe
• Input Voltage: 5 VDC

Shipping Case and Housing:

• Side, top and bottom panels are fitted into special double edge aluminum extrusions impacted into the wood itself to provide the strongest possible bond
• Steel pop rivets in Viking cases are backed up by steel washers to assure that they will never come loose under stress.
• Recessed, spring loaded handles
• Heavy gauge steel ball corners provide extra "armor" at the most vulnerable points of the case.
• All steel recessed twist lock latch assemblies
