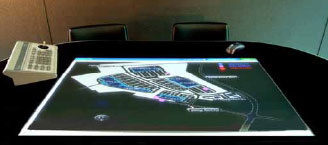

Strategy Board
Model: N/A
Strategy Board
Price:


Add to Cart:


  9999 Units in Stock


The entirely self contained Strategy Board is standard equipment in either the Command Truck or the Command Trailer. Because it is self contained, it could also be installed in a security office or other command and control center easily and quickly. Th


Components:

• Self Contained Unit
• 2 and optional 4 2.8GHz Industrial PCs , 512 MB RAM, 120GB Hard Drive
• 2 Color 36 inch LCD Display Screens
• Video capture boards that will process CCTV security camera images at up to 120
Frames per Second (full color @ 320x240 resolution)
• Cat5 Ethernet connection or optional 2.4 GHz wireless transmissions with WEP encryption up to 256 bit, and Wi-Fi Protected Access (WPA) support for both 802.1x and WPA-PSK, and capable of supporting the government-grade AES encryption.
• Command and Control of all ancillary, optional equipment
• Optional facility overlay function custom made for end user
• Standard equipment in Command Truck or Trailer
• “Black Box” lockable data storage
• Video Capture Boards to communicate with equipment with CCTV cameras

Video Capture Board:

Each CCTV camera has its own configuration Video quality, alarm notification, mask areas, motion detection or continuous recording, motion detection sensitivity, compression mode (MPEG4 or wavelet), smart recording, recording speed, camera name and brightness / contrast/ hue/ saturation can be set in the software for each camera.

Video Resolution Camera images can now be displayed and recorded in a choice of 640x480, 640 x 240 or 320x240 pixels. All cameras images must run at the same resolution, although this can be changed at any time.

Display Live video can be displayed in single camera, full screen format or in selectable multi-camera formats. Switch from a multi-screen format to single camera and back, by a single mouse click on the selected camera view.

Motion Detection When motion is detected in a camera field in an unmasked area, recording commences. Recordings are made in video clips, which are date and time stamped in a log file. Log files can be stored locally or remotely over a network. We have found the motion detection sensitivity of the software to be one of the best available.

Mask Function Areas of camera fields where motion is to be ignored can be user defined (masked), for each camera. Multiple mask areas per camera are permitted. Areas inside a mask can be cleared.

Smart Recording Smart recording can be selected by camera. This enables the full available recording speed to be allocated only to cameras that are actually recording at any particular time.

Digital Watermarking Digital watermarking can be selected for recordings. Any recorded videos exported from the original hard drive recordings are thus ensured to be unedited. This is a particularly important point when video is to be used as evidence in court.

Recording Playback The log files of recorded video clips can be sorted and accessed by year/date/time. Video recordings can be played back while current recording is taking place, although recording speeds may slow down. Recordings can be zoomed in/out and moved around the viewing area, on playback. Recordings can be played back at normal speeds, higher speeds, and slower speeds or frame-by-frame. Individual camera or all cameras can play recordings back at the same time. Switching from multi-camera to single-camera playback is as simple as clicking on a particular camera window while playback is operational. Additional editing features are provided for image sharpening, exporting, adjusting brightness/ contrast and printing. Video clips can be exported as .avi files, playable in Microsoft Media Player or similar. Individual frames can be exported in many file formats, including. Jpg’s. Exported video clips can have the date, time and camera name stamped on the video in a choice of colors.

Communications Remote communication is supported by dial-up server, web-cam server, TCP/IP server and multicast server. Compression of transmitted images can be set from remote systems as MPEG4 or JPEG, independent of recording compression of the host system. MPEG4 will provide much faster transmission. New Webcam software allows up to 16 cameras to be viewed on one screen from the same or multiple DVRs. Remote communications with Win CE equipped PDAs is now provided with G-View.

Storage Capacity As available disk space runs out, the system will overwrite the video clips with the earliest dates. Recording can be specified for any single hard drive or for multiple drives.

Screens:

• LCD or optional projection screen
• Multiple sizes
• Resolution (pixels): (1024xRGB) x 768
• Dot Pitch (mm): 0.264 x 0.264
• Brightness: 700 nit
• Backlight: Dual CCFL
• Contrast Ratio: 250/1
• Color Configuration: RGB V Stripe
• Input Voltage: 5 VDC

PC Specifications:

Processor and Memory:
• AMD Athlon™ 64 processor 3000+ operating at 2.00GHz
• 128KB L1 Cache
• 1MB L2 Cache
• 512MB PC3200 DDR SDRAM memory(expandable to 2GB)
Hard Drive and Multimedia Drives:
• 160GB 7200RPM Ultra DMA hard drive
• 3.5" 1.44MB Floppy Disk Drive Multimedia Drive
• 8x DVD writer and CD-writer combo drive (DVD+RW/CD-RW) (8x DVD+R, 4x DVD+RW, 12x DVD-ROM, 24x CDR, 10x CDRW, 40x CD-ROM)
• DVD-ROM drive 16x max. speed with Intervideo™ WinDVD SE software
Audio, Video, and Graphics:
• Integrated audio, six speaker configurable
• ATI RADEON RADEON™
• 9200SE AGP 8X graphics card with 128MB DDR video memory and TV out
Data, Fax, and Modem:
• Integrated 10/100Base-T networking interface
• V.92 ready data/fax modem
Expandability:
• Two 184-pin (one available)
• Three PCI (two available)
• One AGP (occupied)
• Two external 5.25" bays (both occupied)
• One external 3.5" bay (occupied)
• Two internal 3.5" (one available)
Ports:
• Five Hi-Speed USB 2.0 (one front, four back)
• One Serial
• One Parallel
• Two PS/2
• One External VGA monitor
• Two FireWire (IEEE 1394) ports (one front, one rear)
• Headphone/Microphone
