Chassis TRAC
Model: CT-200
Chassis TRAC
Price: $12,775.00


Add to Cart:


  9999 Units in Stock

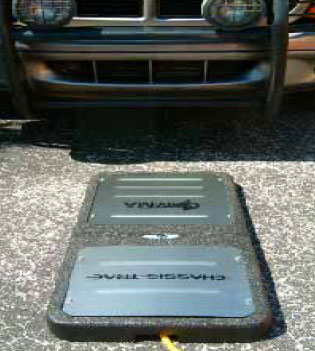

The Chassis TRAC has a wide angled camera lens that records the undercarriage of vehicles, which, in conjunction with the Fast Flow Monitor can be viewed in real-time, remotely, or in conjunction with security personnel from multiple locations. The digit


Components:

Portable and durable NEMA 4X rated housing
High Resolution Color Microvideo camera
Wide angle lens
High brite fluorescent bulbs


Camera:

460 lines of resolution
High performance Sharp chipset
Low light rating is 1.0 lux
Operates on 12 volts DC, 110 milliamps
Video Signal Output 1 V p-p, 75 ohm
Sensor 1/3 LXR CCD
CCD Effective Pixels 537 (H) x 505 (V) EIA
Sync. System DC: Internal, AC: LL
Min. Illumination 0.01 lux @ F1.2 (SAGC on)
Resolution 420 TV Lines
S/N Ratio >48 dB
Electronic Shutter 1/60 to 1/100,000 EIA
Gamma Correction 0.45
Backlight Compensation Auto Detect On/Off
Gain Control AGC 30 dB; SAGC 36 dB
Operational Range -100C to +500C (140F to 1220F)
Humidity Range Up to 80% relative humidity
Power Supply 12-24V DC or AC selectable
Power Draw 3.6 W Max.
Lenses (Special Micro) 1.9 mm Fisheye


Physical Dimensions:

Length 36 in
Width 18 in
Height 2.75 in
Weight 18.5 lbs
