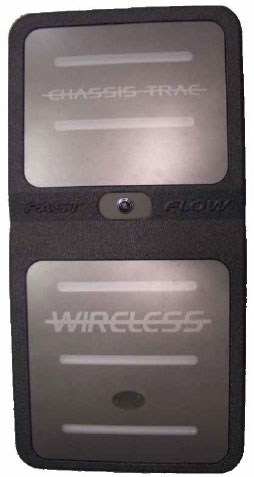

Chassis TRAC Wireless
Model: CT-200W
Chassis TRAC Wireless
Price: $15,925.00


Add to Cart:


  9999 Units in Stock


The Chassis TRAC Wireless has a wide angle camera lens that records the undercarriage of vehicles, which, in conjunction with the Fast Flow Monitor can be viewed in real-time, remotely, or in conjunction with security personnel from multiple locations. T


Specifications:

Components:

Portable and durable NEMA 4X rated housing
1.2GHz 4-Channel 5 Watt Long Range Wireless Video Transmitter w/ optional encryption
High Resolution Color Microvideo camera
Wide angle lens
Self Contained 12 volt rechargeable lithium ion batteries (long lasting 12 volt batteries allows user up to 12 hours of continuous use without recharging, external quick connect transformer makes recharging a simple operation)
High brite fluorescent bulbs


Camera:

460 lines of resolution
High performance Sharp chipset
low light rating is 1.0 lux
Operates on 12 volts DC, 110 milliamps
Video Signal Output 1 V p-p, 75 ohm
Sensor 1/3 LXR CCD
CCD Effective Pixels 537 (H) x 505 (V) EIA
Sync. System DC: Internal, AC: LL
Min. Illumination 0.01 lux @ F1.2 (SAGC on)
Resolution 420 TV Lines
S/N Ratio >48 dB
Electronic Shutter 1/60 to 1/100,000 EIA
Gamma Correction 0.45
Backlight Compensation Auto Detect On/Off
Gain Control AGC 30 dB; SAGC 36 dB
Operational Range -100C to +500C (140F to 1220F)
Humidity Range Up to 80% relative humidity
Power Supply 12-24V DC or AC selectable
Power Draw 3.6 W Max.
Lenses (Special Micro) 1.9 mm Fisheye


Physical Dimensions:

Length 36 in
Width 18 in
Height 2.75 in
Weight 18.5 lbs
