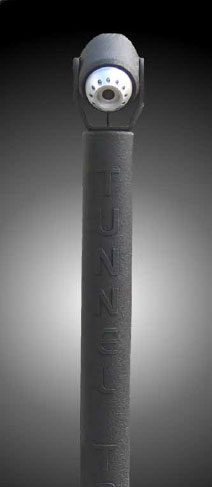

Tunnel TRAC
Model: TT-300
Tunnel TRAC
Price: $13,540.00


Add to Cart:


  9999 Units in Stock


An infrared intruder detector that is a wireless motion monitoring system digitally video recording all motion and intrusions. Tunnel TRAC detects intruders, and then highlights each intruder with a tracking box that surrounds each one in a restricted ar


Components:

Portable and durable NEMA 4X rated housing

1.2GHz 4-Channel 5 Watt Long Range Wireless Video Transmitter w/ optional encryption

Vandal Proof Digital Color Camera 1/3" with I.R. LEDs

Video Board

Camera:

Image Sensor: 1/4" CCD Image Sensor

Image Size: 4.57(H) x 3.9(V) mm

CCD Effective Pixels: (NTSC): 542(H) x 496(V), (PAL): 542(H) x 586(V)

Sensitivity: 1lux F1.2, 0 lux (IR ON),4.3,6.0,8.0,12.0mm F1.8 board lens

Resolution: 380 TV lines

S/N Ratio: Better than 56dB (AGC OFF)

White Balance: Auto (3200-10000K) (Zero color rolling)

Electronic Shutter: (NTSC):1/60-1/120,000sec. (PAL):1/50-1/120,000sec.

Scanning System: (NTSC):525 lines, 60 fields/sec. (PAL): 625 lines, 50 fields/sec.

SYNC System: Internal

Video Output: 1.0 Vp-p composite video at 75 ohm

Gamma Correction: 0.45

Gain Control: AGC

Storage Temperature: -30C to 60C

Operation Temperature: -20C to 50C

IR LED: 11 unit 840nM LED, DC 12V 180mA, 6000hrs

IR Distance: 15 Meter, View Angle: 70, Beam Spread: 30

Water Resistance: IP 55

Power Supply: DC 12V 90mA (+/-10%), AC24V

Back up Power Supply: DC 8.4V (+/-10%)-DC 6V (+/-10%), about 10hrs

Ultra hard grade aluminum, with original anodized finish, anti-bullet glass

Dimensions: φ85mm x 143(L) mm, 1.4Kg (3.08lb)

Video Board:

Board and software provide excellent image display and recording quality through proprietary drivers and compression. Video can be displayed and recorded at 320x240, 640x240 or a true 640x480 non-interlaced resolution, which eliminates the 'ghost effect' in motion video seen with many other systems at 640x480.

Video is compressed for recording by MJPEG or HM (MPEG4-like) compression: HM is proprietary compression technology, designed specifically for CCTV applications. It provides high video quality and yet saves a great deal of disk space through superior compression. CPU acceleration instructions also help the system gain real-time performance.

Instantly sends out notifications when there is an abnormal situation or intrusion. There are many ways to notify an event:

1. Send a voice message to a desk phone or a cell phone.

2. Send a text message to a fax or an e-mail address.

3. Sound an event alarm.

4. Flash an event message on the split screen.

5. Display the event camera in full screen.

6. Trigger traditional alarm devices.

7. Send event reports daily, weekly or monthly by email.

Advanced Motion Detection and Tracking - Moving targets are automatically detected and tracked by a tracking block. This system is sensitive to moving targets in bad lighting environments, and not sensitive to camera shake and the auto-panning of PTZ security cameras.

CCTV devices can be integrated into this system. Through an RS485/RS232 converter, PTZ cameras can be remote controlled for panning, tilting, and zooming. Via I/O ports or an I/O box (depending on board model), the video capture board can receive signals from traditional sensor devices to start recording. Motion based recording can be used to trigger external devices such as lights, switchers, gates, and other traditional alarm devices.

Recording Playback - Search recording log files by date, time, single camera or all cameras. Also search by recording type motion detection, smart saving, alarm input or time lapse. Play back in quad, 9 or 16 camera displays and switch to single camera full screen (and back again) with a mouse click. Speed up to 16X or slow down to 1/8 speed. Increment backwards and forwards by one frame.

Multiple Recording Methods - Video can be recorded continuously, continuously with Smart Saving, On Motion, On Alarm, by time-lapse or by schedule. Different cameras can have recording methods set independently.

Physical Dimensions:

Length 4.7.5 in

Width 6.75 in

Height 45 in

Weight 9 lbs
