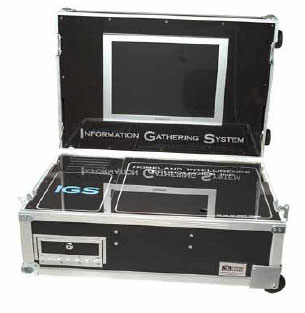

IGS Case
Model: IGS-100CSI
IGS Case
Price: $22,995.00


Add to Cart:


  9999 Units in Stock


This system enables the user to view infrared images, while command center security personnel simultaneously view the same conditions. Used in conjunction with many security operations and for recording vehicle inspections at entry points for trunks, car


Components:

One IGS Wireless Infrared Camera
Single Channel or Four Channel Digital Video Recorder
Color 17 inch LCD/ TV Display Screen
Rugged portable case
External 110 volt receptacle

IGS Wireless Infrared Camera:

Durable, High Impact, Camera Enclosure with NEMA 4X rating (Type 4X enclosures are intended for indoor and outdoor use primarily to provide a degree of protection against corrosion, windblown dust and rain, splashing water, and hose-directed water; and to be undamaged by the formation of ice on the enclosure)
1.2GHz 4-Channel 3 Watt Long Range Wireless Video Transmitter w/ optional encryption
Vandal Proof Digital Color Camera 1/3" with I.R. LEDs (Built to withstand a blow from a 10lb hammer or 12 gauge shotgun blast, this built in weatherproof high performance color CCTV camera has twelve I.R. LEDs provide illumination at night to 60 feet. The 1/3" CCD chip provides quality color images during the day and seamlessly switches to B/W at night or low light conditions)
Self Contained 12 volt rechargeable lithium ion batteries (long lasting 12 volt batteries allows user up to 12 hours of continuous use without recharging, external quick connect transformer makes recharging a simple operation)

Full Color 17 Display:

17-inch LCD TV with standard 4:3 aspect ratio and 500:1 contrast ratio

Shipping Case and Housing:

Side, top and bottom panels are fitted into special double edge aluminum extrusions impacted into the wood itself to provide the strongest possible bond
Extension handle and durable ball bearing wheels for complete portability
Steel pop rivets in Viking cases are backed up by steel washers to assure that they will
never come loose under stress.
Recessed, spring loaded handles
Heavy gauge steel ball corners provide extra "armor" at the most vulnerable points of the case.
All steel recessed twist lock latch assemblies

Digital Video Recorder:

Video Format: NTSC or PAL
Video Input: 4 Camera inputs(BNC), 1Vp-p/75ohm
Video Output: 1 BNC video out(1Vp-p/75ohm) for main monitor, 1 BNC video out(1VPp/ 75ohm) for call monitor, video out(1Vp-p/75ohm) for looping
Video Display: Full, PIP, Quad and 2x2 zoom for live and playback
Display Resolution: 720 x 484(NTSC) or 720 x 576(PAL)
Recording Resolution: 720 x 484(NTSC) or 720 x 576(PAL)
Video Pause: YES
Alarm Input: 4 Alarm inputs
Alarm Output: 1 Alarm outputs
Hard Disk Storage: One Hot-Swap 3.5inch IDE Hard Disk
Recording Rate: 60/50FPS for NTSC/PAL
Display Rate: Real time for each camera
Recording Mode: Continuous, Time-Lapse, Schedule or Event recording
Playback Rate: 60/50FPS for NTSC/PAL
Playback Search: By Date/Time or Event or Segment
Motion Detection: Yes, with configurable detection area and sensitivity
Video Loss Detection: YES
Event Log: YES
User Interface: Menu Driven
Setup: On screen display setup
User Input Device: Front panel keypad
Timer: Built-in real time clock
Watch Dog Timer: YES
Ethernet: RJ45 connector for network communication
Archive: Compact Flash Slot for archive
RS-232: 9-pin female connector for local communication
RS-485: RJ11 connectors for remote control
Audio: 1 mono(MIC) input, 1 mono(SPEAKER) output
Power Source: 12VDC ~ 24VAC
Power Consumption: 60W
Dimension(H)x(W)x(D): 110 x 320 x 320.8
Operating Temperature: 0c ~ +50c

Physical Dimensions:

Length 20.5 in
Width 26.5 in
Height 15 in
Weight 65 lbs
