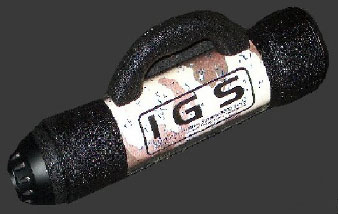

Hawkeye
Model: IGS-100LR
Hawkeye
Price: $11,625.00


Add to Cart:


  9999 Units in Stock


A wireless handheld infrared camera for use in completely dark conditions like the IGS but equipped with a long range lens. These handheld wireless products provide unlimited application for viewing, and digitally video recording surveillance activities, including perimeter security.


Components:

Portable and durable NEMA 4X rated housing
1.2GHz 4-Channel 5 Watt Long Range Wireless Video Transmitter w/ optional encryption
Vandal Proof Digital Color Camera 1/3" with I.R. LEDs
Long Range Lens
Self Contained 12 volt rechargeable lithium ion batteries (long lasting 12 volt batteries allows user up to 12 hours of continuous use without recharging, external quick connect

Camera:

Image Sensor: 1/4" CCD Image Sensor
Image Size: 4.57(H) x 3.9(V) mm
CCD Effective Pixels: (NTSC): 542(H) x 496(V), (PAL): 542(H) x 586(V)
Sensitivity: 1lux F1.2, 0 lux (IR ON),4.3,6.0,8.0,12.0mm F1.8 board lens
Resolution: 380 TV lines
S/N Ratio: Better than 56dB (AGC OFF)
White Balance: Auto (3200-10000K) (Zero color rolling)
Electronic Shutter: (NTSC):1/60-1/120,000sec. (PAL):1/50-1/120,000sec.
Scanning System: (NTSC):525 lines, 60 fields/sec. (PAL): 625 lines, 50 fields/sec.
SYNC System: Internal
Video Output: 1.0 Vp-p composite video at 75 ohm
Gamma Correction: 0.45
Gain Control: AGC
Storage Temperature: -30C to 60C
Operation Temperature: -20C to 50C
IR LED: 11 unit 840nM LED, DC 12V 180mA, 6000hrs
IR Distance: 15 Meter, View Angle: 70, Beam Spread: 30
Water Resistance: IP 55
Power Supply: DC 12V 90mA (+/-10%), AC24V
Back up Power Supply: DC 8.4V (+/-10%)-DC 6V (+/-10%), about 10hrs
Ultra hard grade aluminum, with original anodized finish, anti-bullet glass
Dimensions: φ85mm x 143(L) mm, 1.4Kg (3.08lb)

Lens:

Magnification 10x25
Field of View ft@1000 yards 300 m@1000meters 100

Physical Dimensions:

Length 17.25 in
Width 4 in
Height 6 in
Weight 5 lbs
